Medium Expansion Foam Aspirating Tube
  • MODEL
    990, 991, 993, 995, 996, 997, 998
  • QUANTITY
  • SPECIFICATION
Compatible Handline Nozzles 710, 711, 712, 715, 722, 723, 725, 727, 730, 735, 745, 766, 767
Weight
Length

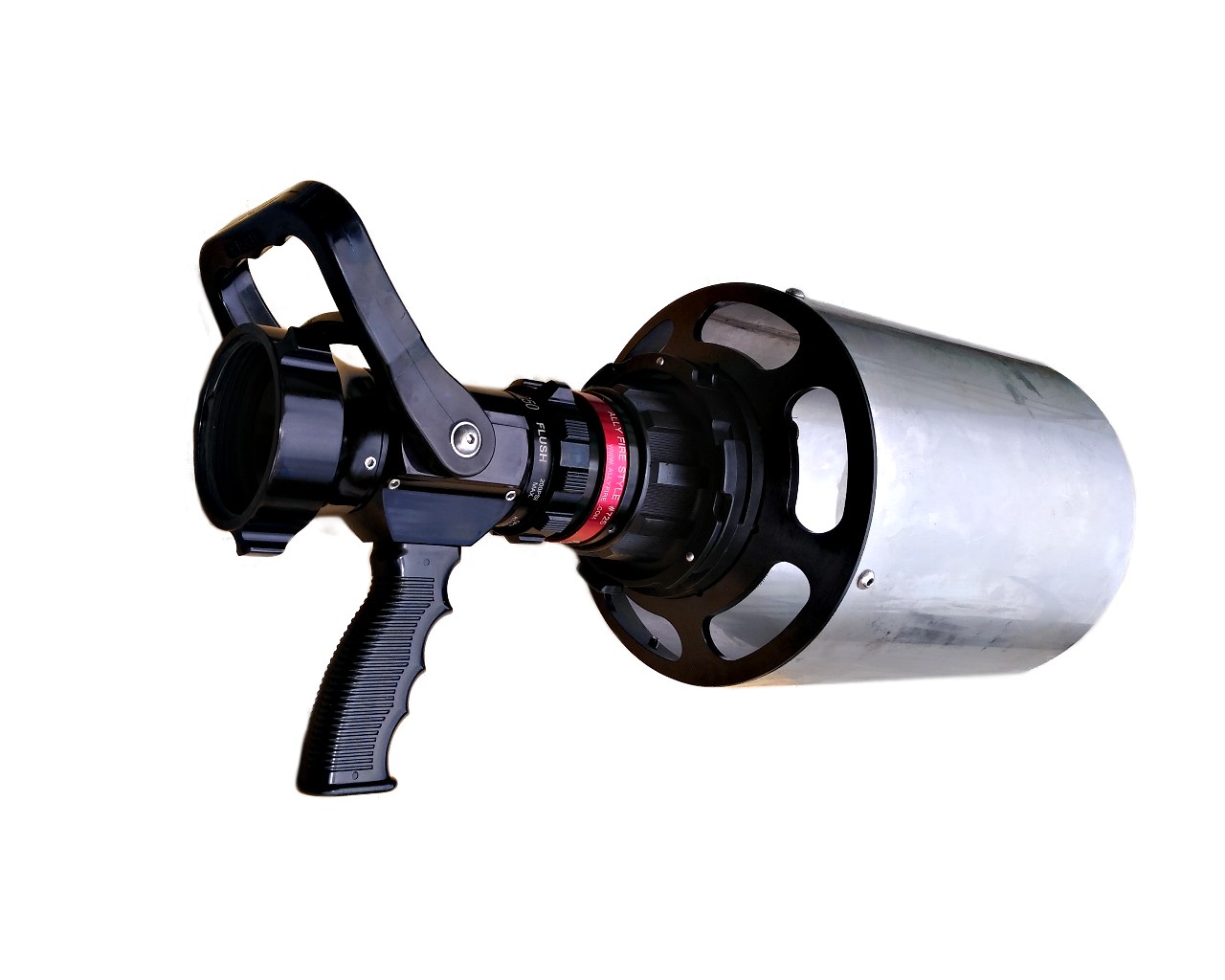

Medium Expansion Foam Aspirating Tube
 * Compact and light weight stainless steel
 * Easy and quick to attache and remove the handline nozzle
 * Designing for Ally Fire Tech Handline Nozzle: 710, 711, 712, 715, 722, 723, 725, 727, 730, 735, 745, 766, 767
 * Produce quality foam blanket from commonly available foam concentrate
 * Expansion ratio up to 85:1

Model Number Tube Diameter Wide Expansion Ratio Compatible Handline Nozzle
990 5.3”(134.6mm) 50:1 710/711/712/730
991 7”(177.8mm) 85:1 710/711/712/730
993 5.3”(134.6mm) 30:1 715/735
995 7”(177.8mm) 50:1 715/735
996 7”(177.8mm) 25:1 722/723/766/767
997 7”(177.8mm) 25:1 725/745/727
998 9”(228.6mm) 50:1 725/745/727
