Flow | Max.1250GPM (4800LPM) |
Waterway Size | 3.0" |
Outlet Size | 2.5" |
Inlet Size | 3" or 4" Flange or 3" Female Thread |
Travel Range | 135° Vertical; 360° Rotation |
Material | Alloy |
Weight | 18.3lbs.(8.3kg) |
Complement to | 605,606,649,626 |
~Industrial Monitors 848
* Full 3.0" waterway for flow efficiency up to 1250GPM.
* The cast ball joints are fitted with Stainless Steel Ball bearings and lubricated with a grease nipple for easy maintenance.
* Easily operated even under high pressure the geared elevation mechanism is fully enclosed for environmental protection.
* Positive twist lock both vertical and horizontal travel.
* Epoxy coating exterior.
* Stainless steel lever.
* Inlet option: 3" Flange, 4" Flange and 3.0" Female thread (conform to ANSI).
* A comprehensive range of water master nozzle and self educting foam master nozzle available to fit for any application.
* FM approved

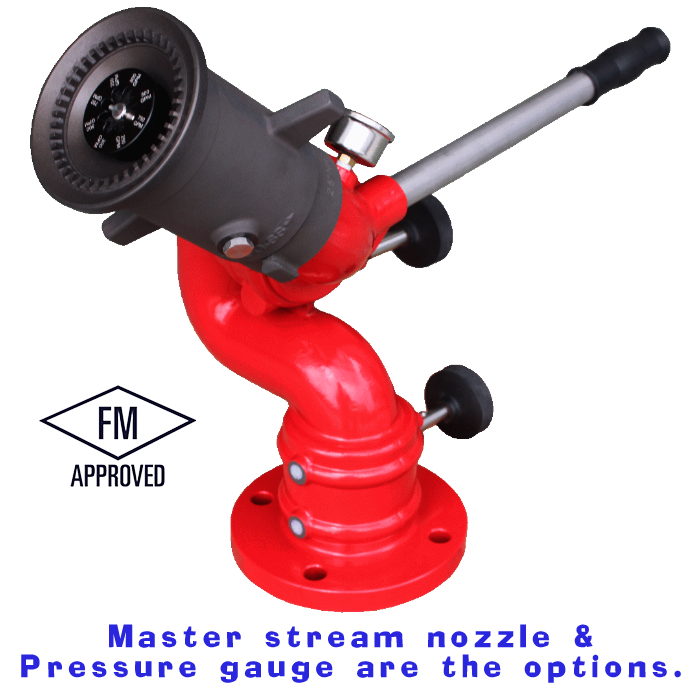

- Master stream nozzle and Pressure gauge are the options.
