2838
  • MODEL
    2838
  • QUANTITY
  • SPECIFICATION
FM Certificate Approved
Flow Max. 750GPM (2900LPM)
Waterway Size 2.5"
Outlet Size 2.5"
Inlet Size 3" or 4" Flange or 2.5" Female Thread
Travel Range 135° Vertical; 360° Rotation
Material Bronze
Weight 37.5 lbs (17 kg)
Complement to 605,606,649,626
  • 100% Nickel plating on entire surfaces
  • Enhance durability with excellent performance.
  • Apply to seawater
  • FM approved

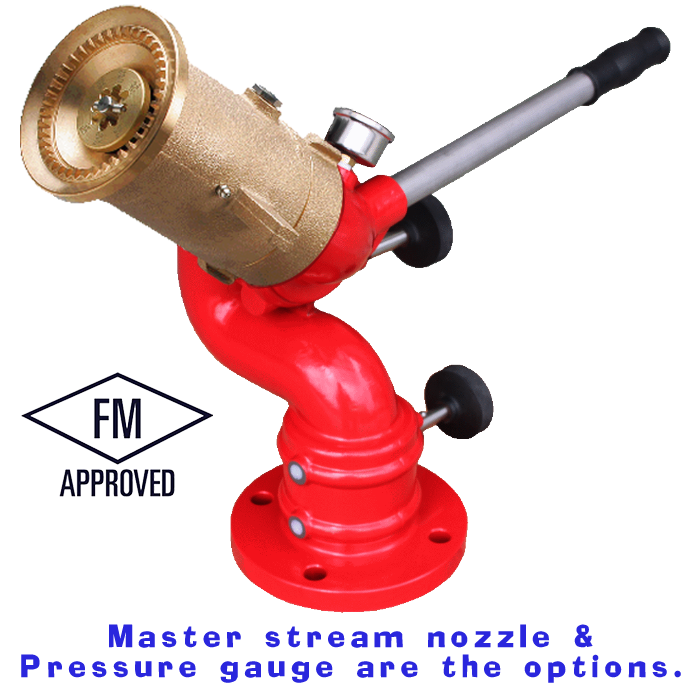

Industrial Monitors 2838

* Full 2.5" waterway for flow efficiency up to 750GPM.
* The cast ball joints are fitted with Stainless Steel Ball bearings and lubricated with a grease nipple for easy maintenance.
* Easily operated even under high pressure the geared elevation mechanism is fully enclosed for environmental protection.
* Positive twist lock both vertical and horizontal travel.
* Major component made form bronze BC6 (C83600), ideal for corrosive environment.
* Epoxy coating exterior.
* Stainless steel lever.
* Inlet option: 3" Flange, 4" Flange and 2.5" Female thread (conform to ANSI).
* A comprehensive range of water master nozzle and self educting foam master nozzle available to fit for any application.
  • Master stream nozzle and Pressure gauge are the options.
