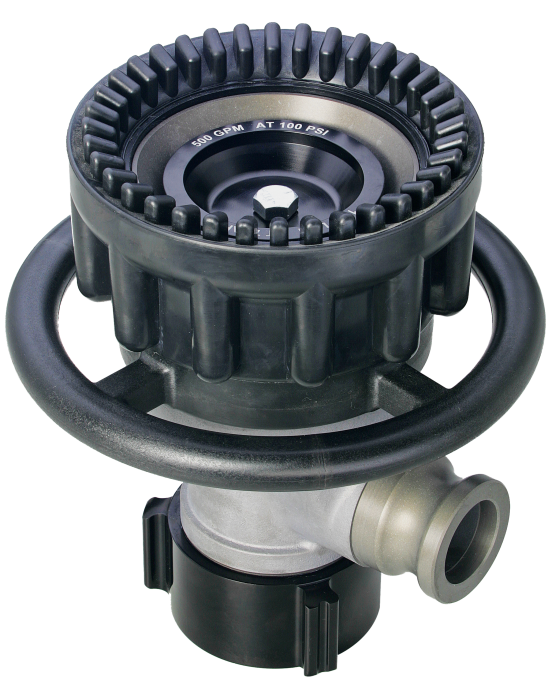

Self Educing Master Stream Nozzles 626

-  Build-in eductor can transform any monitor to a foam station
-  Designed to used with Class A or B foam, including AAAF or fluoroprotein
-  Include a set of calibrated foam orifice plates.  The plates are easily interchangeable to adjust foam proportioning
-  Nozzle pattern is adjustable from straight stream to variable fog angles
-  Baffle is easily removed for flushing debris
-  Simple design and rugged construction ensure low maintenance and long service life
-  Include an industrial grade UV-resistant pick-up hose with fast connection fitting
-  Length of Pick-up hose is 118"(3m) and the hose diameter is 1.5"(38mm).
-  Available in lightweight hardcoat anodized aluminum or heavy-duty brass construction
-  For other non-standard (customized) thread swivel or flow settings, please provide us the specification you need

• File name : Drawing-625
