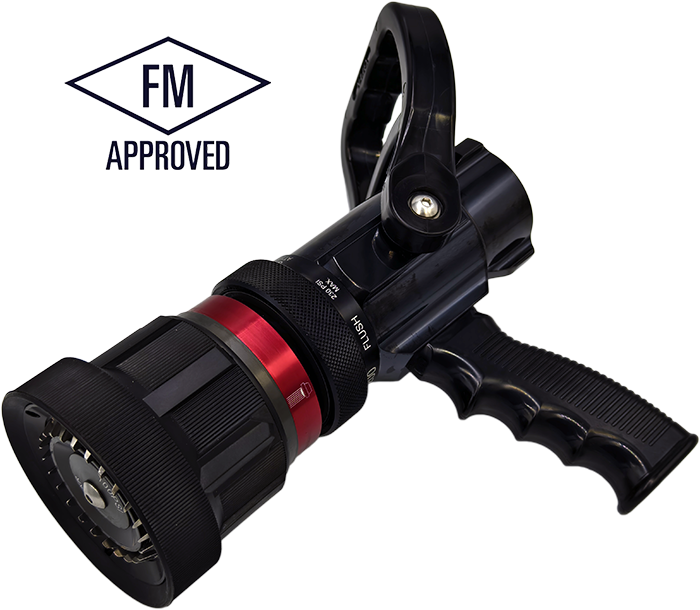

723
  • MODEL
    723
  • QUANTITY
  • SPECIFICATION
FM Certificate Approved
Flow Control Style Selectable flow at a pressure. Flow does not change with the pattern
Flow Settings at 100 PSI (7 Bar) 30-60-95-125-150-200 GPM (115-230-360-475-550-750 LPM)
Coupling Size 1.5"(38mm) or 2.5"(65mm)
Material Lightweight Aluminum
Weight 3.1kg
Length 272mm
Selectable Gallonage Nozzle 710,711,712,722,723,715,725,727
  • High strength aluminum construction with trademark Nituff finish (50 Microns of PTEF impregnated hard-coated finish)
  • Constant flow selectable gallonage nozzle with multiple flow settings
  • Selected flow remains constant regardless of pattern change
  • 1/4 turn for quick change from straight stream to fog
  • Integrated stainless steel stream shaper to enhance performance
  • Combination of fog and straight stream
  • Flush debris without shutting down
  • Superb wide fog pattern for optimum personal protection
  • Standard optimum operating pressure 7 bar. Excellent performance at pressure of as low as 3.5bar
  • Conforms to all aspects of NFPA 1964 (spray nozzles, shutoff and tips), 2008 edition
  • For other non-standard (customized) thread swivel or flow settings, please provide us the specification you need.
  • FM approved
