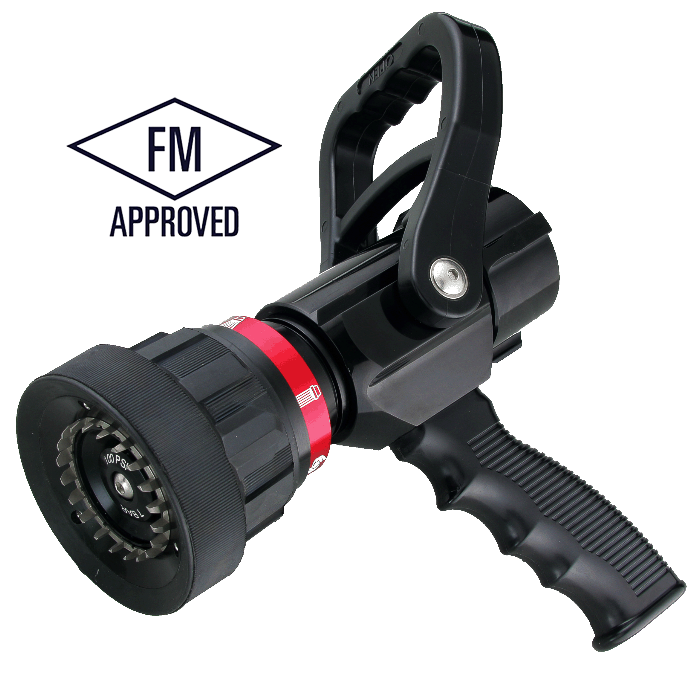

735
  • MODEL
    735
  • QUANTITY
  • SPECIFICATION
FM Certificates YES
Flow Control Style One single gallonage flow and does not change with pattern.
Flow Settings at 100 PSI (7 Bar) 60, 95 or 125 GPM (230, 360 or 475 LPM)
Coupling Size 1.5"(38mm)
Material Lightweight Aluminum
Weight 1.94kg
Length 233mm
CONSTANT GALLONAGE NOZZLES
  • One single gallonage flow
  • Provide standard flow 60, 95 or 125 GPM (230, 360 or 475 LPM) for choice.
  • Flow remains constant gallonage does not change with pattern
  • Combination of fog and straight stream
  • 1/4 turn from straight stream to fog
  • Detent design for flow selector
  • Ball shutoff
  • Meets NFPA1964 Standard
  • All lightweight materials, hard coat anodized aluminum.
  • Provides NH, BSP and NPSH standard swivels for choice
  • For other non-standard (customized) thread swivel or flow settings, please provide us the specification you need
  • FM approved
